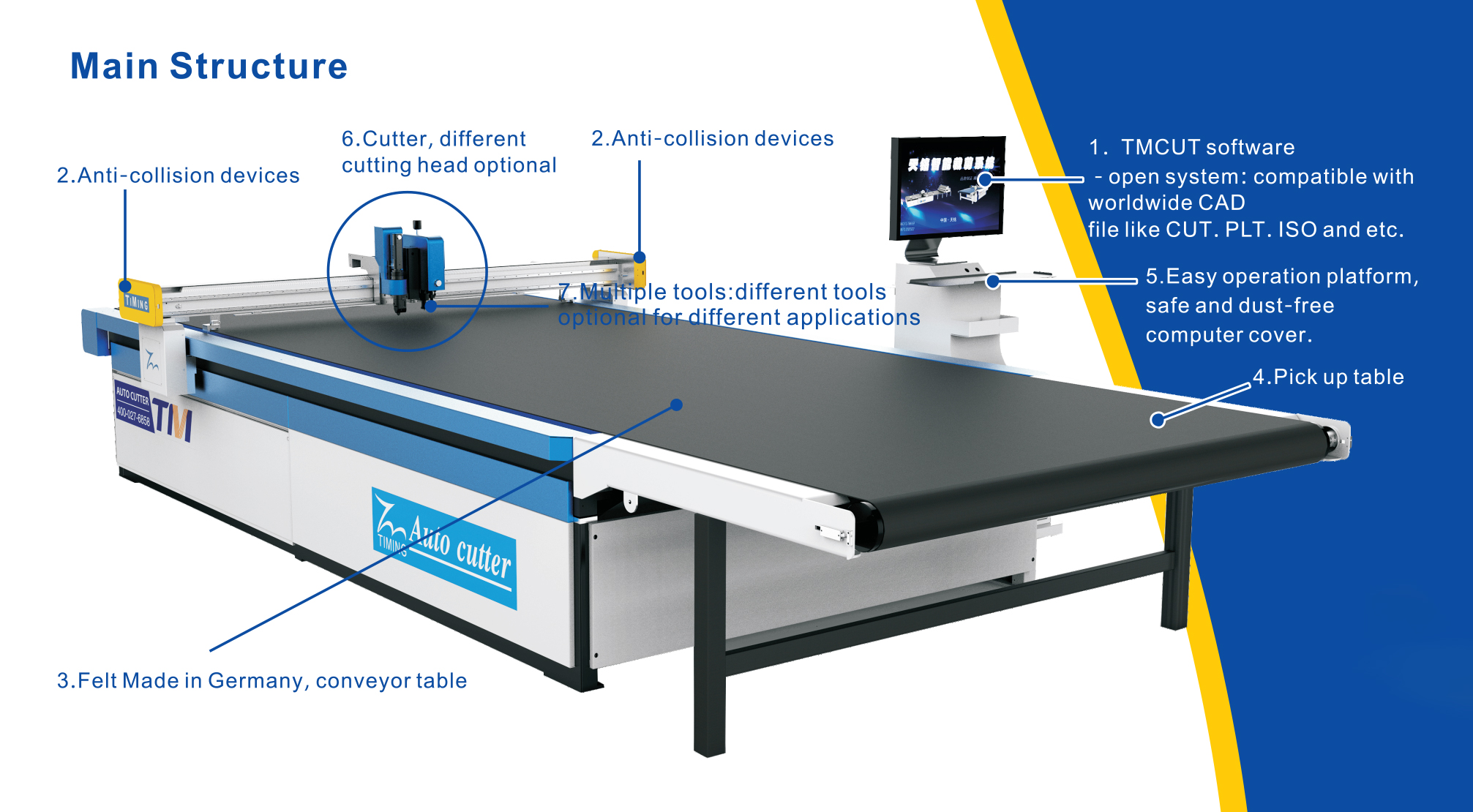

Automatic Single Layer Cutting Machine

Automatic Single Layer Cutting Machine


Features

  • High Yield: Acceleration is reached at 1500~4500mm/s, cutting speed is up to 300~1000mm/s
  • Multiple tools: Different tools option for different applications
  • Durability: Servo driver, safe and stable
  • Simple: Easy to change tools
  • Customization: Can be adjusted according to customer requirements
  • Dimension: Customized size available

Specification:

Model S7-2516F
Cutting size(W*L) 1600mm* 2500mm
Machinge dimension(W*L) 2400mm*4350mm
Customized length range 800mm~5000mm
Customized width range 800mm~2600mm
Cutting speed 0mm/s ~ 1000mm/s

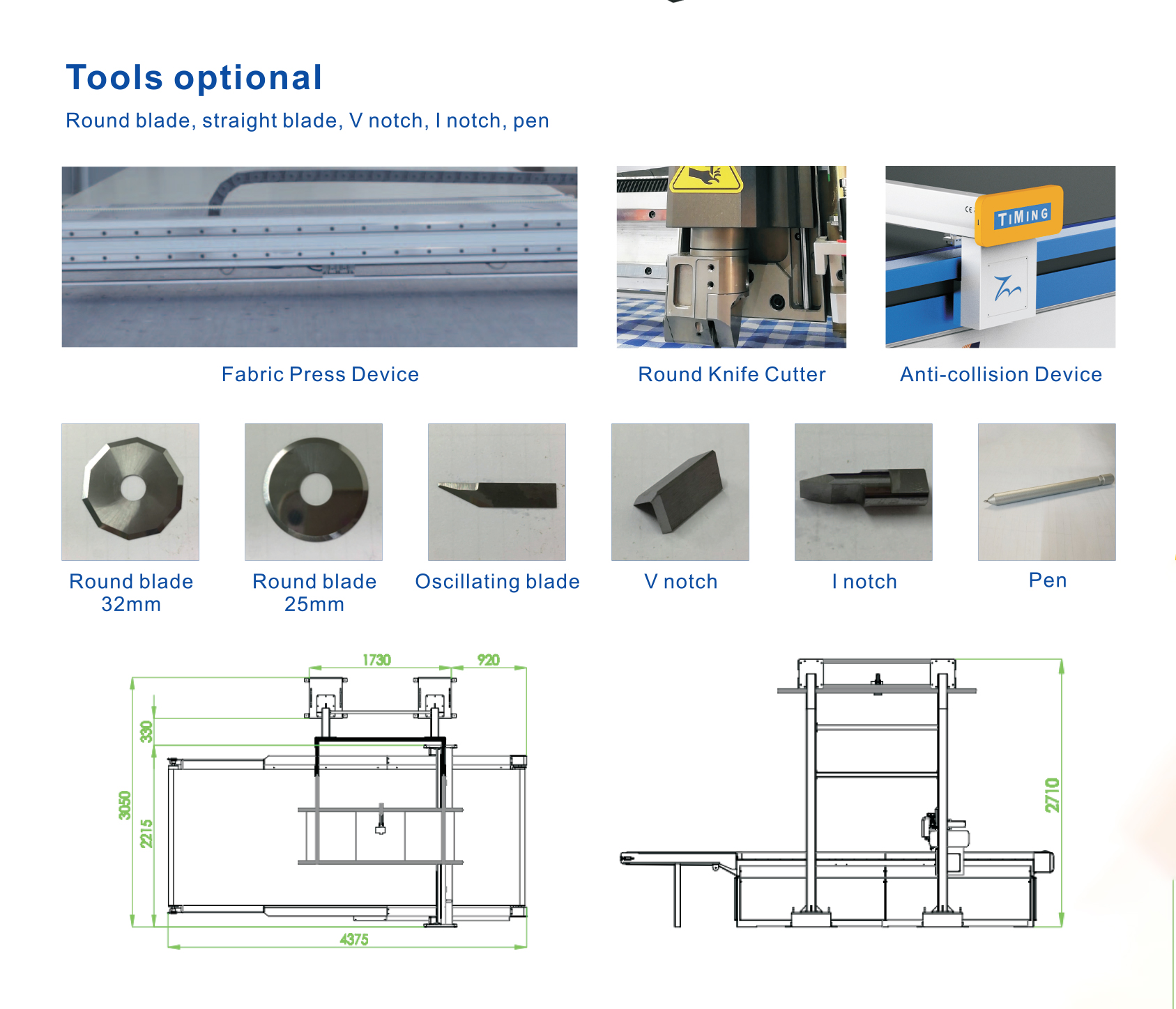

Tool configuration Tungsten steel straight knife, round knife, and other tools like V notch, I notch etc optional
Drive Motor Servo motor
Vibration cutter Vibration speed 18000/Min RPM 80W motor
Material fixed method Vacuum absorb
Data format DXF,PLT,HPGL
Air pressure, flow 0.55MOa 100L/min
Vacuum pump power 9KW
Working voltage / frequency AC220V ± 22V,50Hz ± 1Hz
Vacuum pump working voltage / frequency AC280V ± 38V,50Hz ± 1HZ
Work environment Temperature 0° ~ 40° humidity 20% ~ 80%
