Automatic Spreading Machine

Automatic Spreading Machine


TSK Series: KNIT & WOVEN

Dynamic Speed, Non-Tenstion & Precisison


Features

  • Machine returns back to original position once fabric runs empty.
  • The machine power will automatically shut off upon 5 minures idle.
  • The spread laid fabric is not pulled when the emergency stop triggers.
  • Automatic fabric expanding system, driven wheels for tension-free spreading.
  • PLC touch panel with graphical user interface, easy to use.
  • Dynamic speed control.
  • Simple operation increases productionefficiently and also ensures the best quality

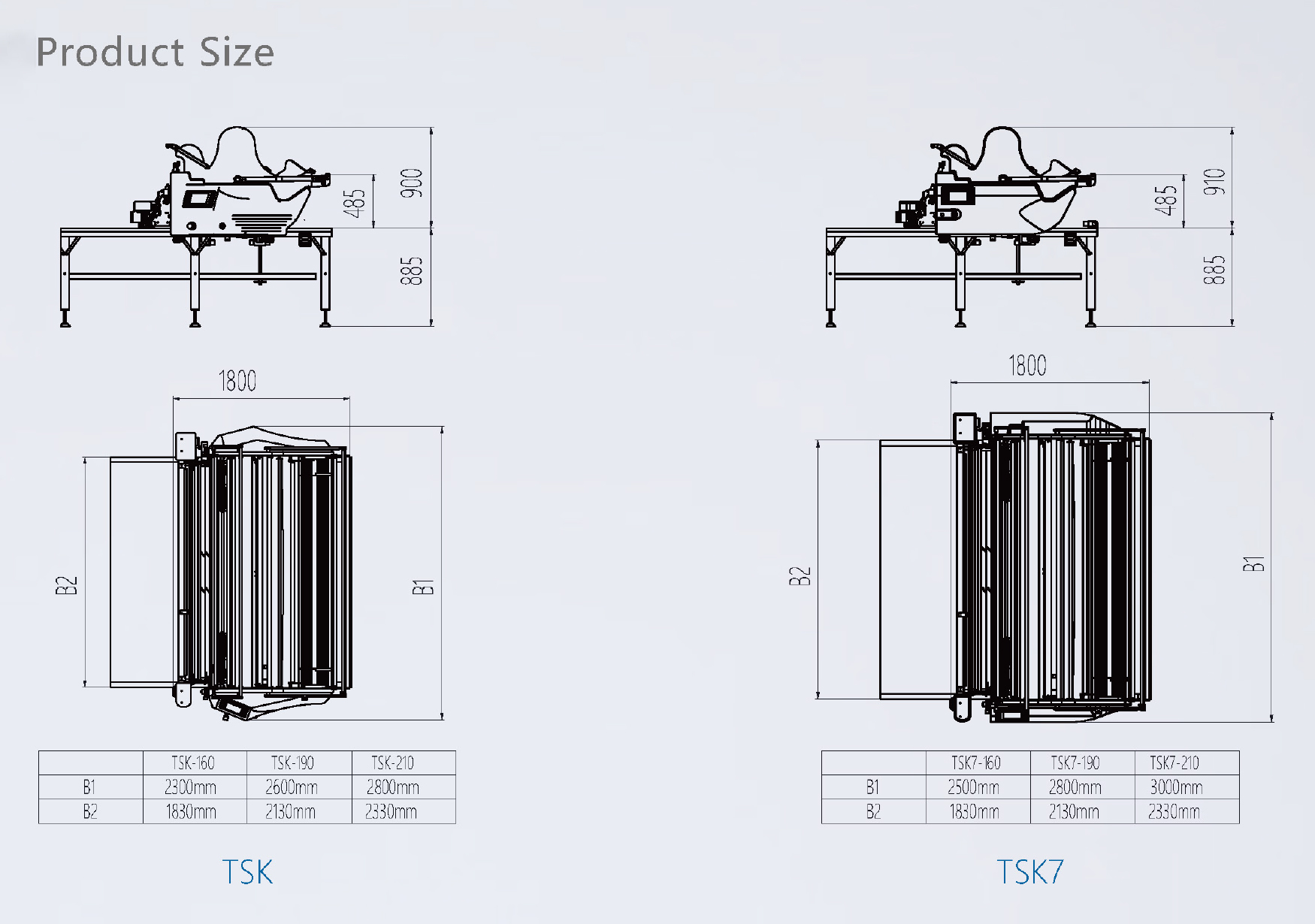

Specification

Models TSK-160/ TSK7-160 TSK-190/ TSK7-190 TSK-210/ TSK7-210
Electricity 1P/AC220V - 50HZ - 15A/1.5KW
Working Width 63*/1600mm 75*/1900mm 83*/2100mm
Table Width 72*/1830mm 84*/2130mm 92*/2330mm
Roll weight Standard:80kgs; Customized: 100Kgs max
Roll Diameter 450mm max
Carriage Speed 90m/min max

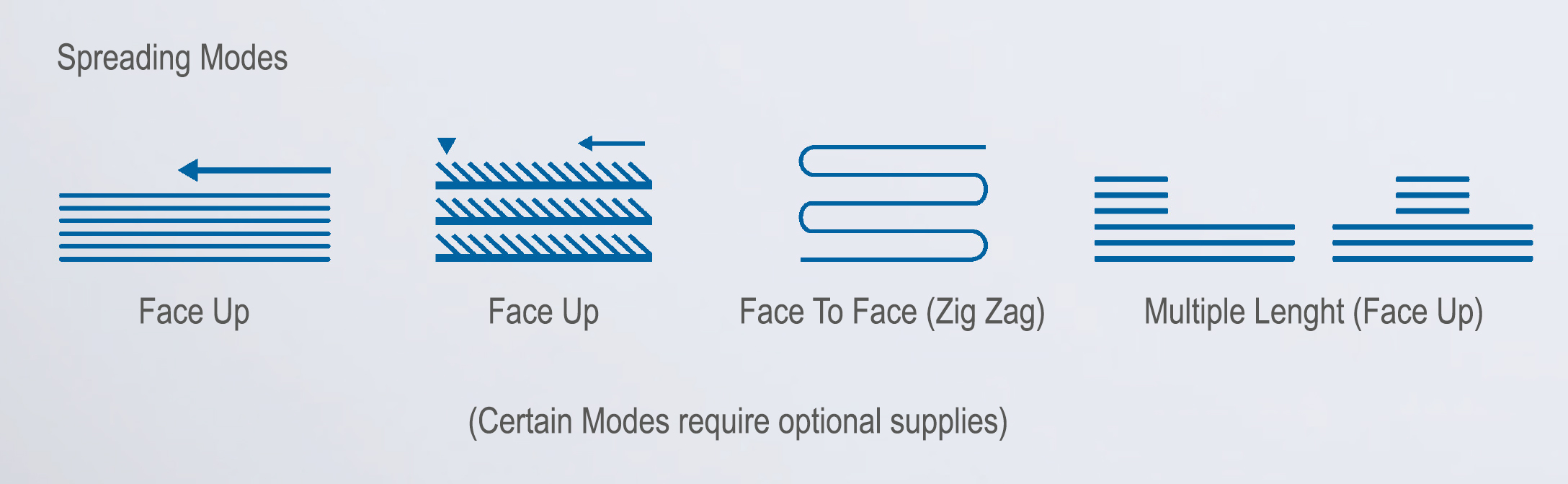

Ply Height One-Way: Standard 220mm; Customized: 300mm
Face to Face: 150mm

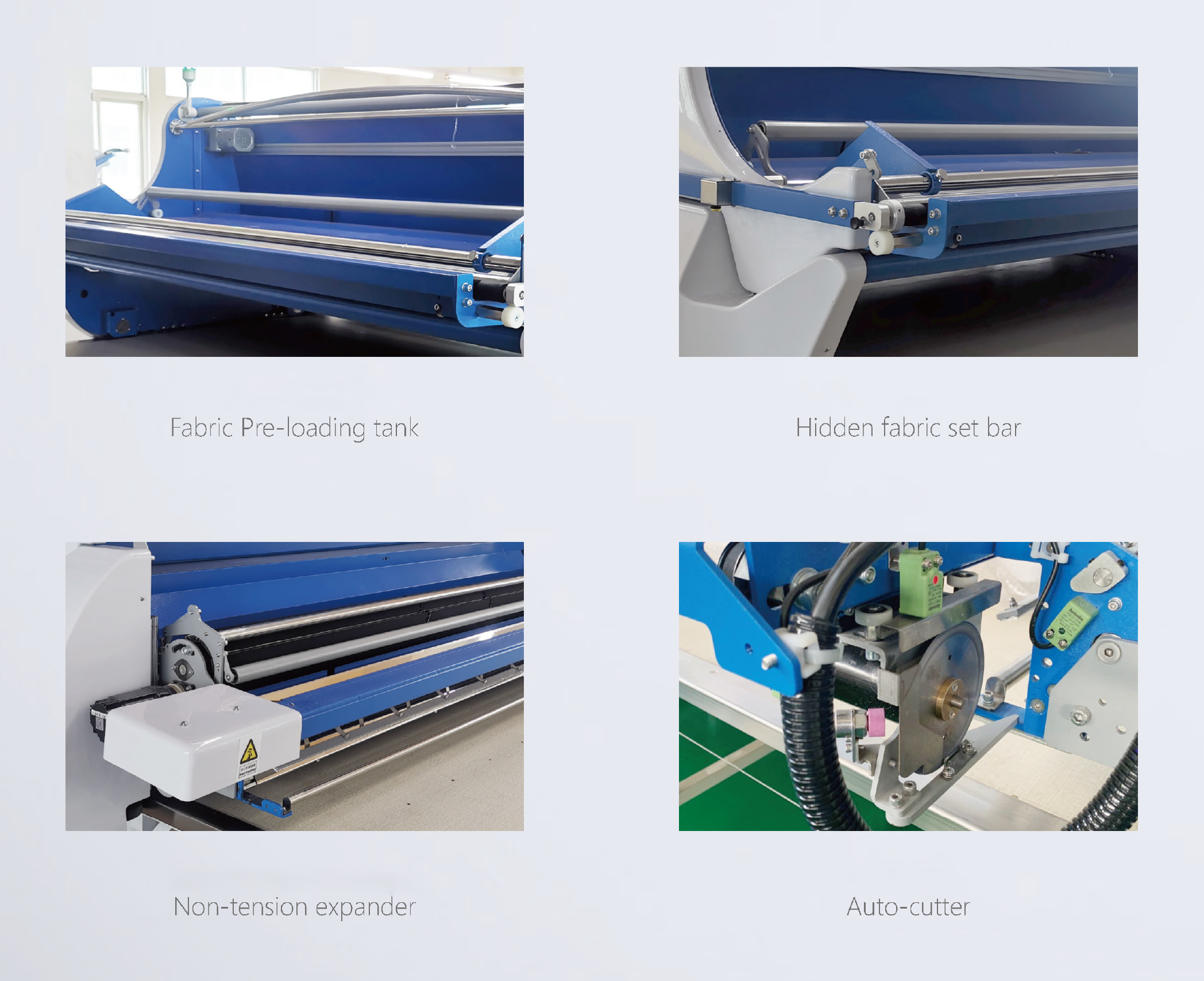

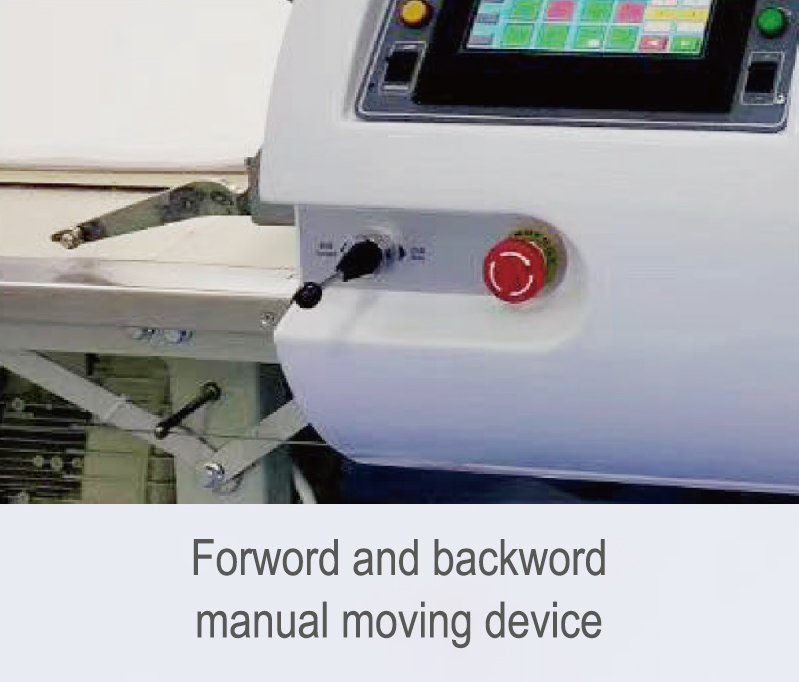

Standard Equipment

  • Set up of spreading length memory
  • Auto acceleration and deceleration by computer
  • Bucket type servo unwinding synchronically
  • Fabric setting bar and fabric expander
  • Emergency stop
  • Auto-lifting device
  • Adjustable cutter travel length
  • Layer counter
  • Photo cell for edge control
  • Auto-cutter
  • Rewinding device. (Cloth roll)

Optional Devices

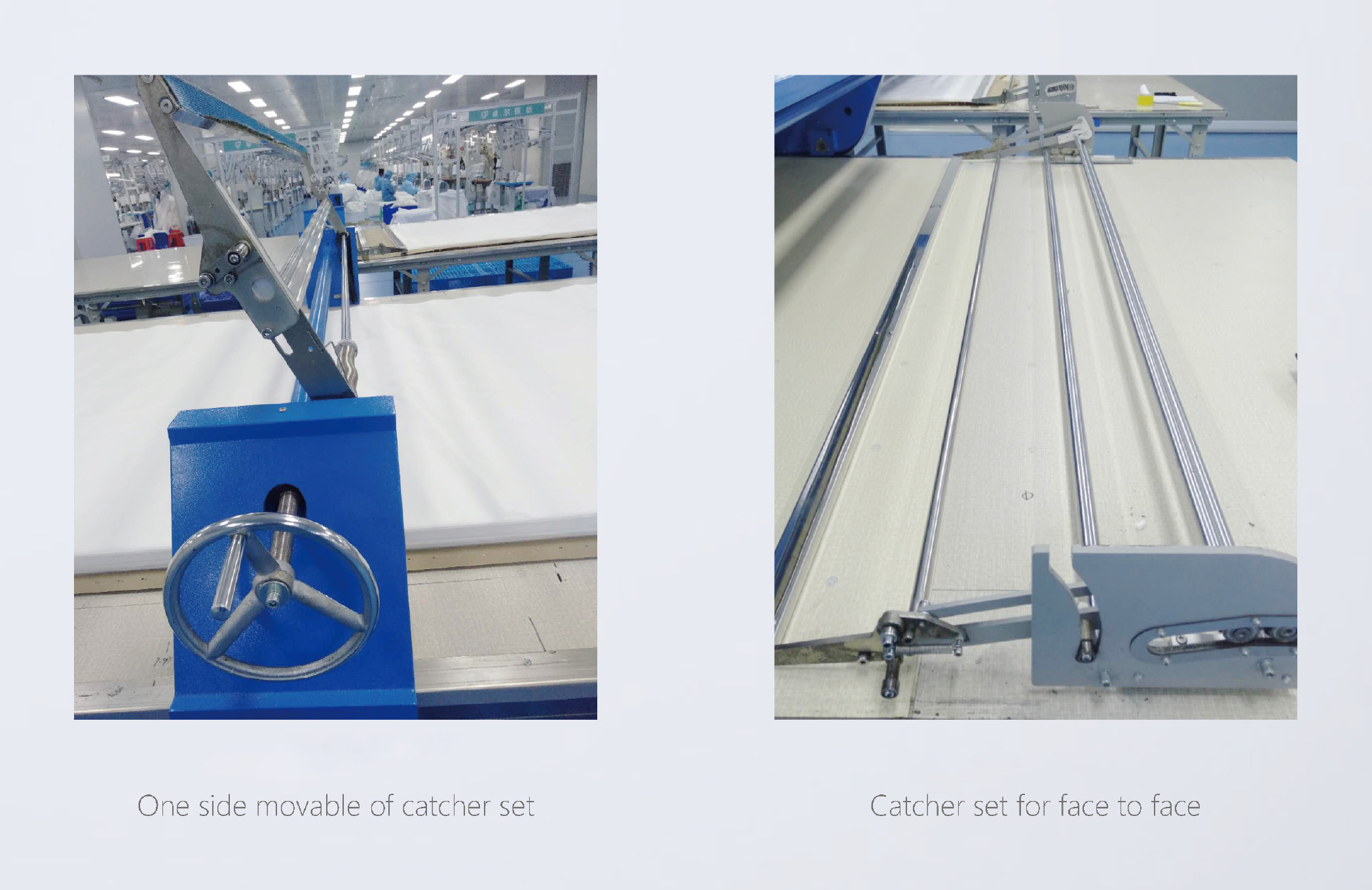

  • One Side movable of catcher set
  • Catcher set for face to face
  • Fabric edge- blowing feature agianst curling effect
  • Anti-static device
  • Tubular fabric device
  • Rod for light fabric
  • Anti-collision device
  • Travel-on platform
  • Remote control

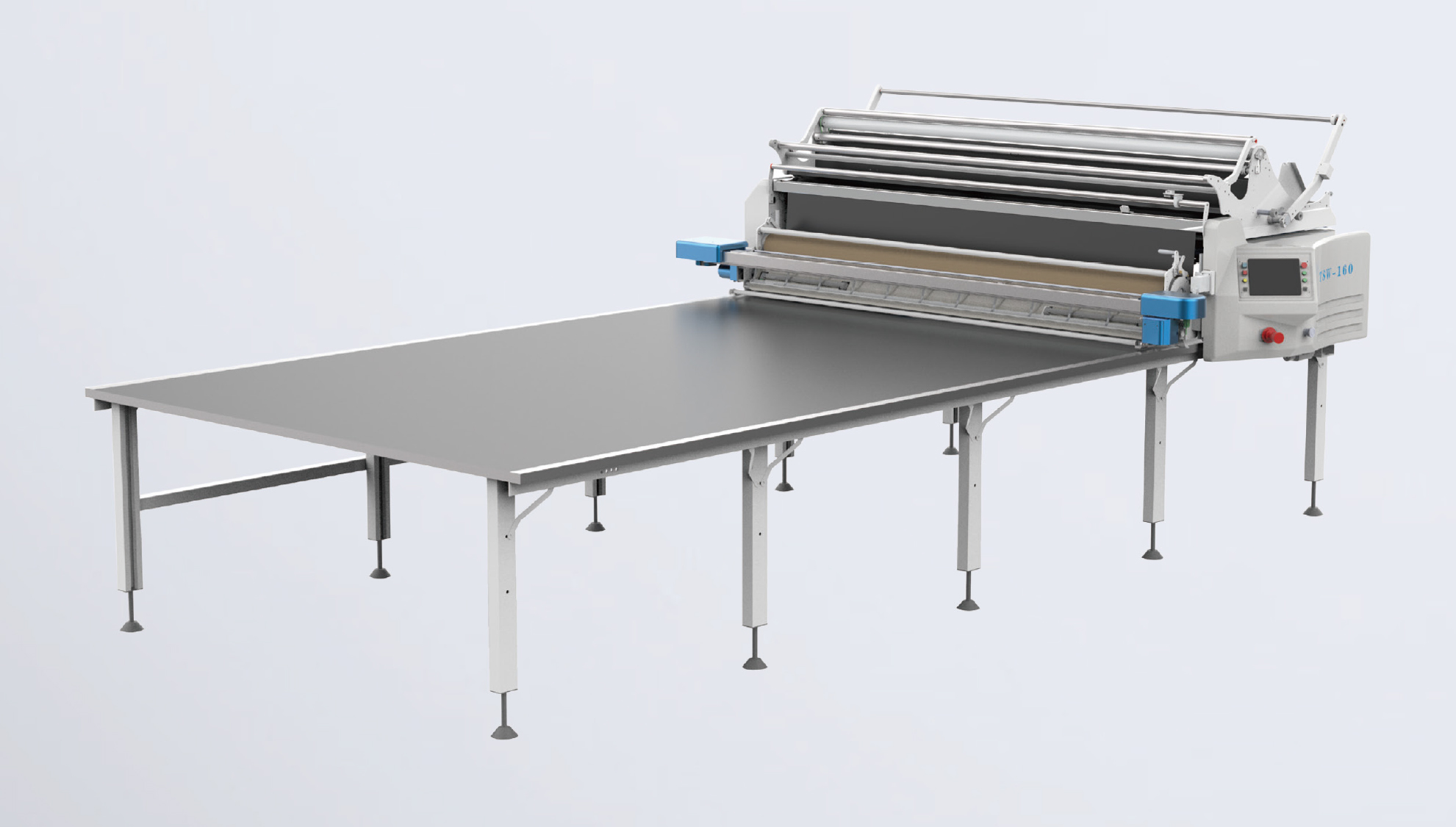

TSW Series: WOVEN


Application:

  • Especially fot woven fabrics, includes lighter, thinner and slippery fabrics and etc.

Specification

Models TSW-160 TSW-190 TSW-210
Electricity 1P/AC220V - 50Hz - 15A/1.5KW
Working Width 63*/1600mm 75*/1900mm 83*/2100mm
Roll weight Standard:80kgs; Customized: 160Kgs max
Roll Diameter 450mm max
Carriage Speed 100m/min max
Ply Height One-Way: Standard 220mm; Customized: 260mm
Face to Face: 150mm

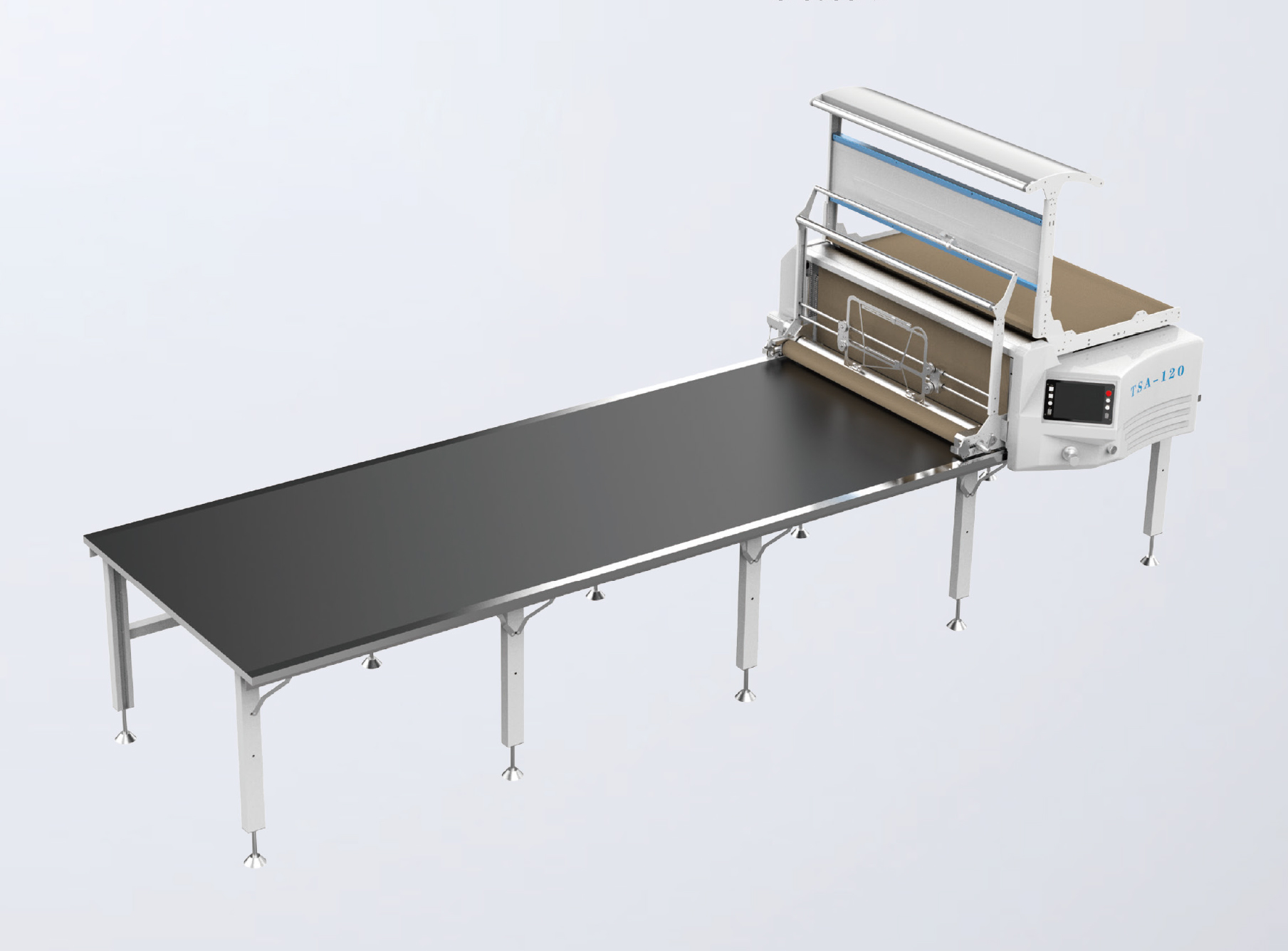

TSA Series: Tubular Book Folded Fabric Only


Application:

  • Especially fot woven fabrics, includes lighter, thinner and slippery fabrics and etc.

Options

  • Double feeding

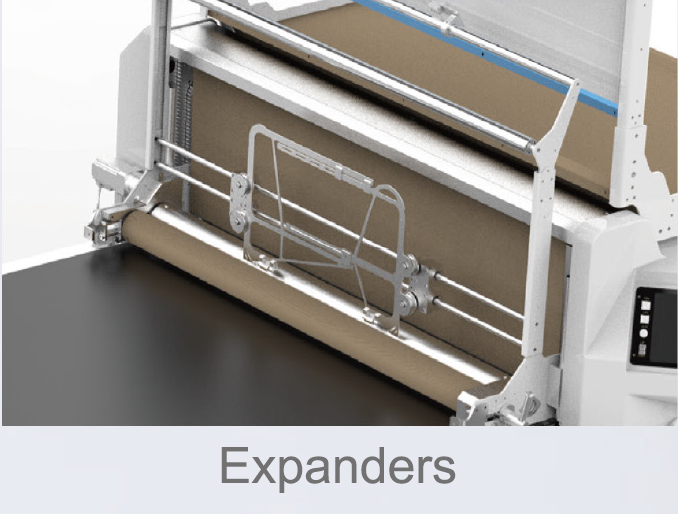

  • Adjustable expanders in different widhts

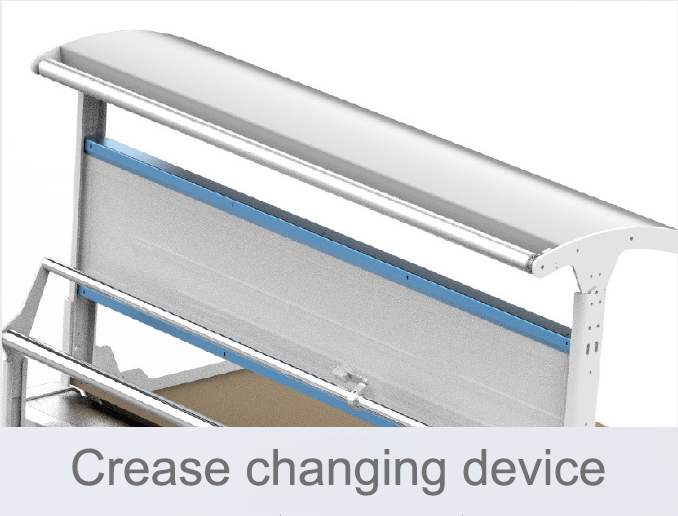

  • Crease changing device
  • Separate crease changing unit for maximum spreading accuracy
  • Operator's travel-on platform alternatively with support bracket

Specification

Models TSA-100 TSA-120
Electricity 1P/AC220V - 50Hz - 15A/1KW
Working Width 39*/1000mm 47*/12mm
Fabric weight max. 150kg
Fabric Height 650mm
Carriage Speed max. 100 m/min
Spreading height Standard:max. 200mm / Customized:max 260mm

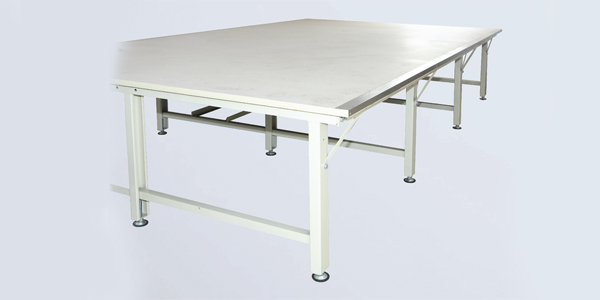

Table


Main features

  • Extra reinforcements in each leg available
  • Very fast and easy to mount as table legs it comes already assembled.
Type (mm) (mm) (mm) (mm) Other
NOrmal 1830/2130/2330/2530 1200 800-900 27-30 Customized
Flotation table 1830/2130/2330/2530 1200 800-900 800-900 Customized

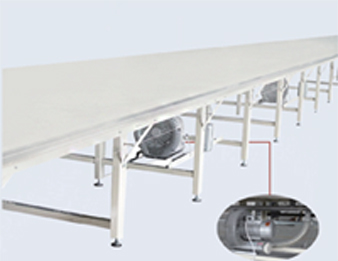

Blower recommendation

  • For light weight material 1 blower per 3.6 meters
  • For heavy weight material: 1 blower per 2.4 meters

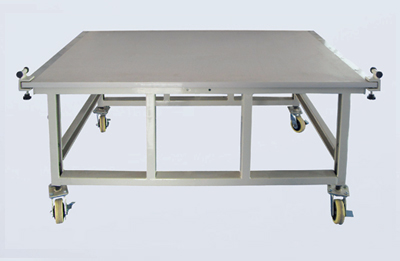

Movable table optional

  • Moving function, it helps to combine the spreading machine for different table lines.
